Chiller

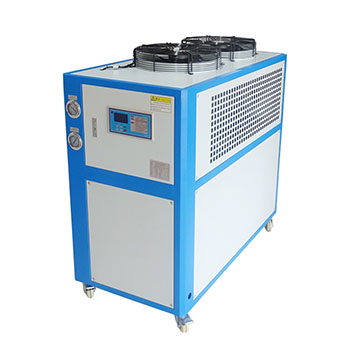

                     Chiller:1P/2P/3P/5P/6P/8P

The chiller can be widely used in: plastics, electronics, chemical industry, chemical fiber, electroplating, food, textile, clothing, printing, blow molding, blister, medicine, preservation, construction, machinery supporting equipment and many other industries. The specifications and models of the configured chillers are also different.

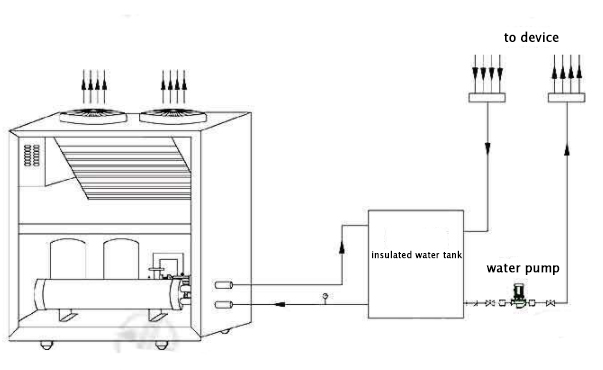

Chiller connection diagram:

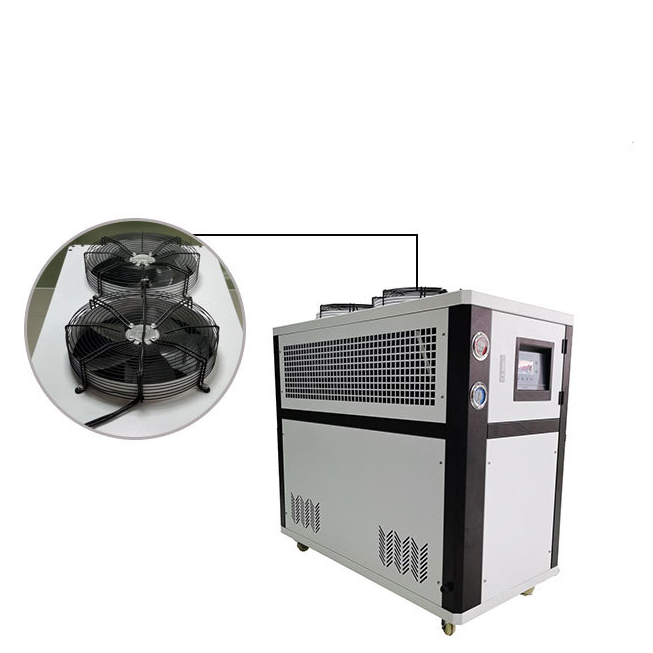

Product features: top fan - large elevation angle, large air volume, low speed, silent external rotor axial flow fan, sound effect and energy saving 30%

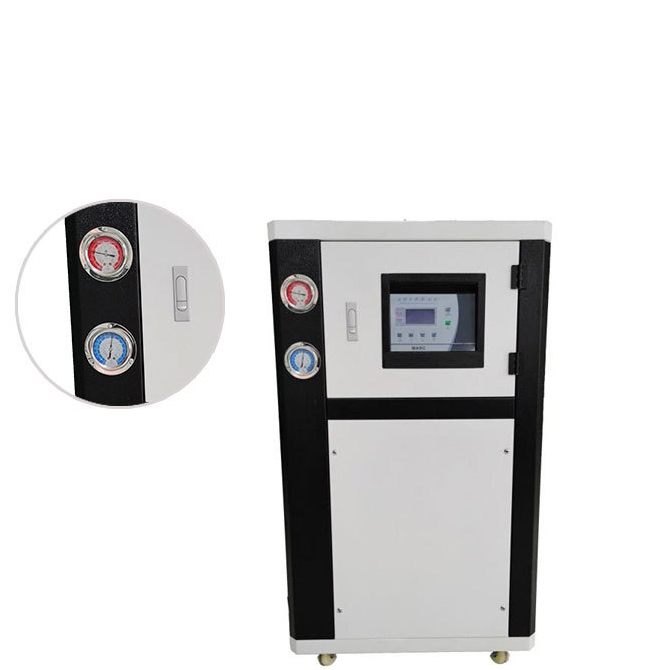

Accurate oil meter - using brand high and low pressure oil meter data to accurately implement feedback equipment status

The working principle of the water cooling unit:

1. The water cooling unit includes four main components: compressor, evaporator, condenser, expansion valve, so as to achieve the cooling and heating effect of the unit;

2. The refrigerant (ie, the refrigerant) absorbs the heat of the cooled object in the evaporator and vaporizes it into steam, and the compressor continuously removes the generated steam from the evaporator.

It is extracted and compressed, and the compressed high temperature and pressure steam is sent to the condenser;

3. Then it releases heat to the cooling medium (such as water, air, etc.) and condenses into high-pressure liquid. After being depressurized by the throttling mechanism, it enters the evaporator, vaporizes again, and absorbs the heat of the cooled object, and so on.

During the working process of the blowing machine, different power blowing machines need to be equipped with different power chillers
